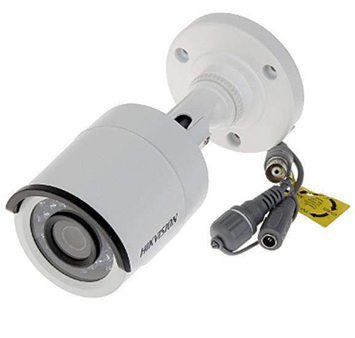

Camera

Image Sensor 2 MP CMOS image sensor

Max. Resolution 1920 (H) × 1080 (V)

Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time PAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s

Day & Night Color

Angle Adjustment Pan: 0° to 360°; Tilt: 0° to180°; Rotate: 0° to 360°

Slow ShutterMax. 16x

Lens

Lens Type 3.6 mm, 6 mm fixed lens

Focal Length & FOV 83.6° (3.6 mm), 52.8° (6 mm)

Lens Mount M16

Image Image Settings Brightness, Sharpness, 3D DNR, Mirror, Smart light

Frame Rate PAL: 1080p@25fps,NTSC: 1080p@30fps

Wide Dynamic Range (WDR) 130 dB

Image Enhancement WDR, BLC, HLC

Privacy Mask 4 programmable privacy masks

White Balance Auto/Manual

White Light Up to 40 m

AGC Yes

Interface Video Output

Switchable TVI/AHD/CVI/CVBS Event

Motion Detection 4 programmable areas

General Material

Front Cover: Metal,Main Body: Plastic,Bracket: Metal

Dimension

223.1 mm × 77.1 mm × 82.6 mm (8.78" × 3.04" × 3.25")

Weight

Approx. 436 g (0.96 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

Up the coax, Protocol: HIKVISION-C (TVI output)

Power Supply 12 VDC ± 25%

Consumption

Max. 4.2 W

IR Range

N/A

Approval

Protection

IP67
